RP-TNC Female Extension Cable 8m / 26.2ft Jumper Low Loss RG58 Coax RF Coaxial (RP TNC — Reverse Polarity TNC, Male Pin)
Product details
| Management number | 218134779 | Release Date | 2026/05/03 | List Price | $8.16 | Model Number | 218134779 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

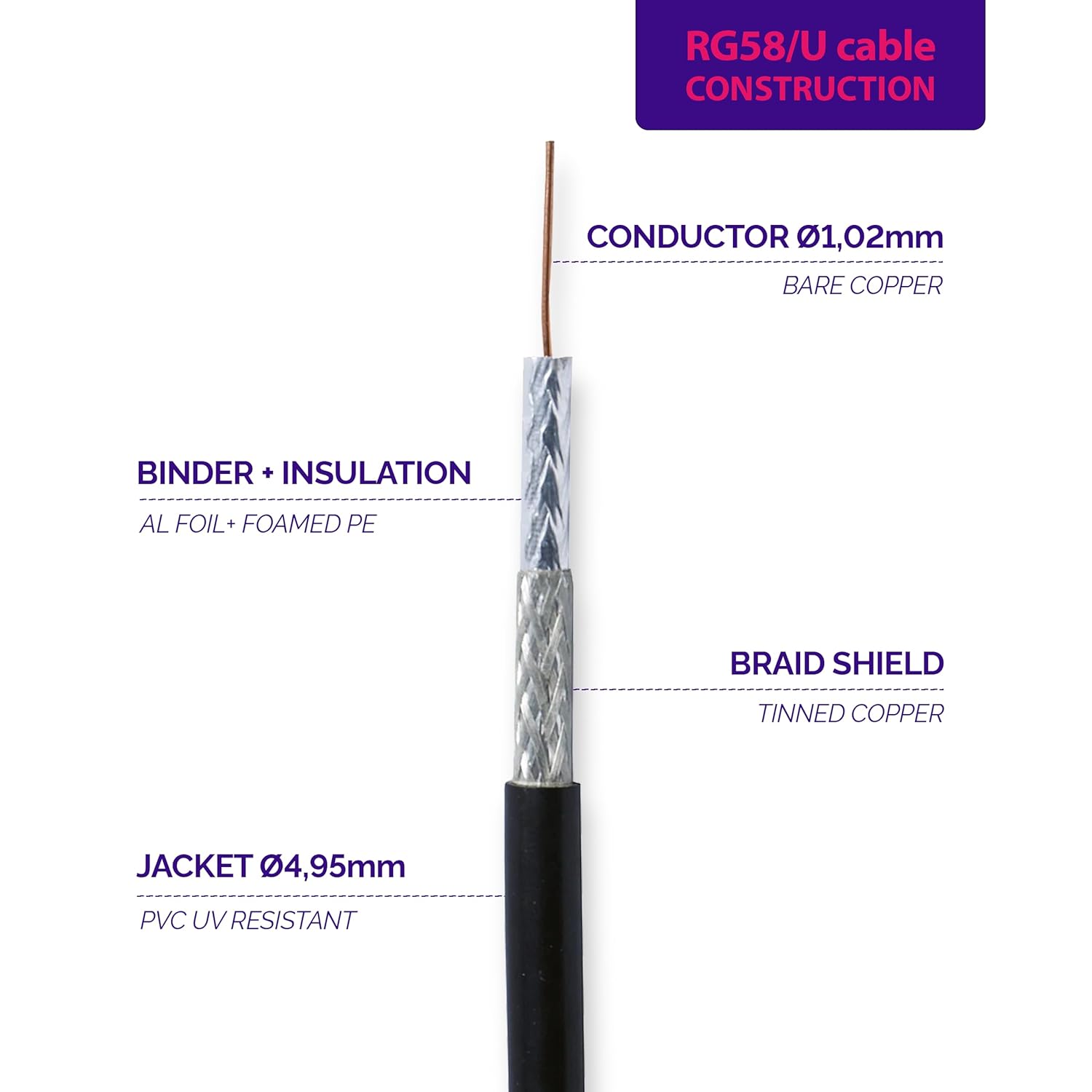

RP-TNC Female to Female Low Loss Semi-Flexible RG58/U Coaxial CableDouble Shielded with Black PVC JacketLength: 8 meters (26.2 ft)PLEASE NOTE BEFORE ORDER: The RP-TNC is a special type of TNC connector. Externally, the two connectors are identical, but internally, the RP-TNC Male has a female contact and the RP-TNC Female has a male plug-shaped central contact. Features✅ Indoor/Outdoor use. Flexible UV-protected black PVC jacket. ✅ Solid Copper Conductor and Tinned Copper Braided Shield for best-in-class data transmission with minimal attenuation. ✅ Double-wall shrink tubing with adhesive layer for better protection of connectors from moisture. ✅ Assembled in EU, fully tested and packed.SpecificationsCable Type: RG58/U Center Conductor Type: Solid Copper (1 Strand) Impedance: 50 Ohm Frequency Range: DC-6GHz Cutoff Frequency: 41 Ghz V.S.W.R: ≤ 2 Operating voltage: 1900Vrms Input Power (Peak): 2.5 KW Velocity of propagation: 80% Shielding Effectiveness: >90dB Capacitance: 83.33 pF/m Dielectric Type: PE Jacket Material: UV PVC No. of Shields: 2 (Aluminium foil + Tinned Copper Braid) Operating Temperature: -40 to +80 deg C Mechanical SpecificationsDiameter: 4.95mm Inner Conductor: 1.02mm Dielectric: 2.90mm Second Shield: 3.53mm Bending Radius: 50mm Attenuation dB/100m:150Mhz: 14.1 220Mhz: 17.1 450Mhz: 24.6 900Mhz: 35.1 1500Mhz: 43.9 1800Mhz: 52.5 2000Mhz: 55.5 2500Mhz: 62.3 5800Mhz: 92.5
- ✅【 Indoor/Outdoor use 】 Flexible extension cable with UV-resistant, Waterproof and Frostproof black PVC jacket.
- ✅【 Solid Copper Conductor 】 The 1.02mm copper conductor and tinned copper braid shield of RG58/U cable provide best-in-class data transmission with minimal attenuation.
- ✅【 Double-wall shrink tubing 】 Additional adhesive layer for better protection of connectors from external environment.
- ✅【 Assembled in EU 】 The connectors are soldered with silver-added solder for best contact and long life. Each cable is tested before shipment.
| Color | RP-TNC Female / RP-TNC Female |
|---|---|
| Model | RG58-RPTNCF-RPTNCF-8 |
| Frequency | 6 GHz |
| Brand Name | RANGEFUL |
| Cable Type | Coaxial |
| Item Weight | 0.34 Kilograms |
| Part Number | RG58-RPTNCF-RPTNCF-8 |
| Manufacturer | RANGEFUL |
| Connector Type | Rp-tnc Female |
| Connector Gender | Female-to-Female |
| Compatible Devices | Antenna, Modem, WLAN Equipment, Wi-Fi Router, Wireless Devices |
| Included Components | 1 cable |
| Warranty Description | 2 years |
| Other Special Features of the Product | Low Loss, Pure Copper, Flexible |
