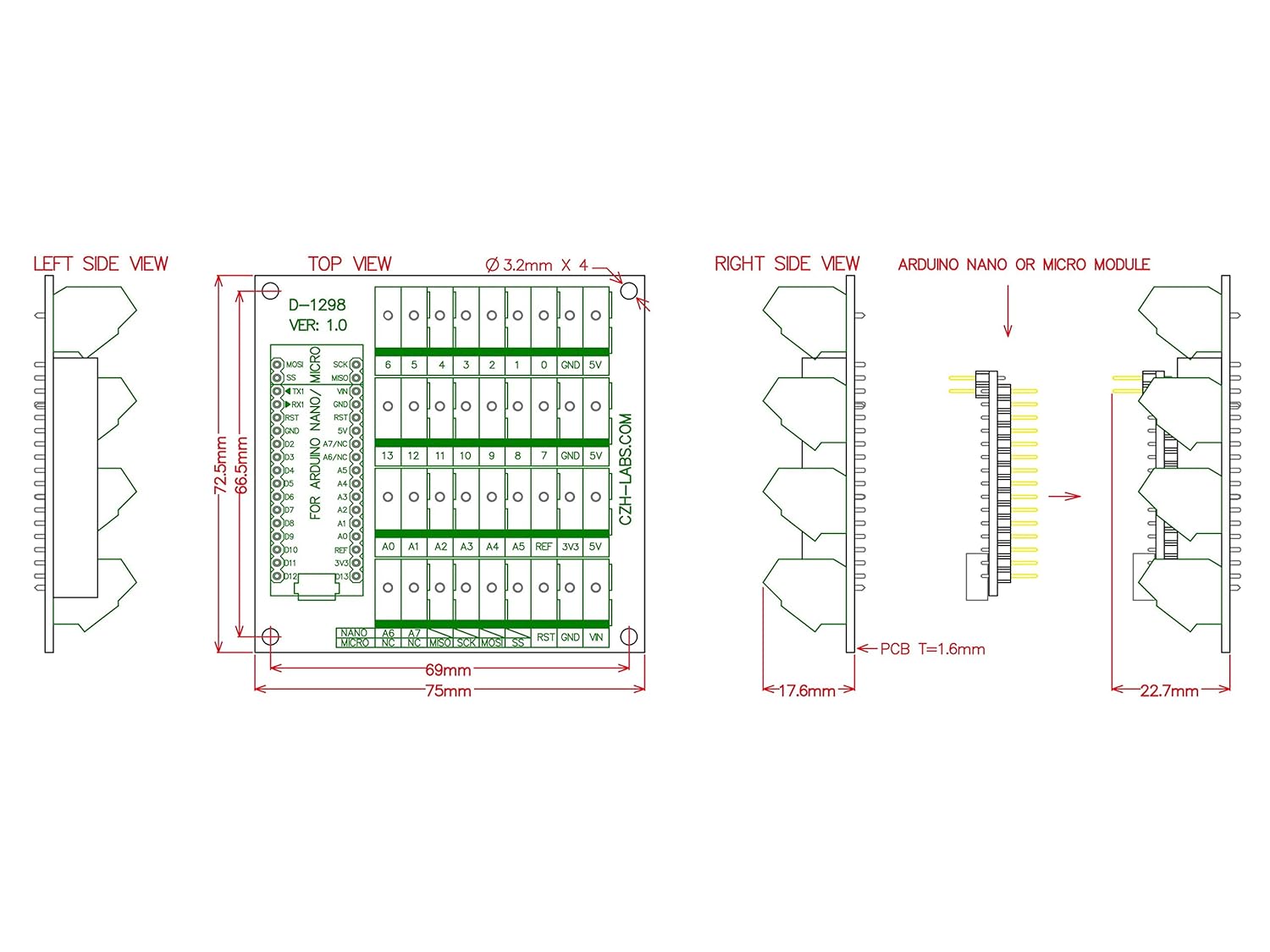

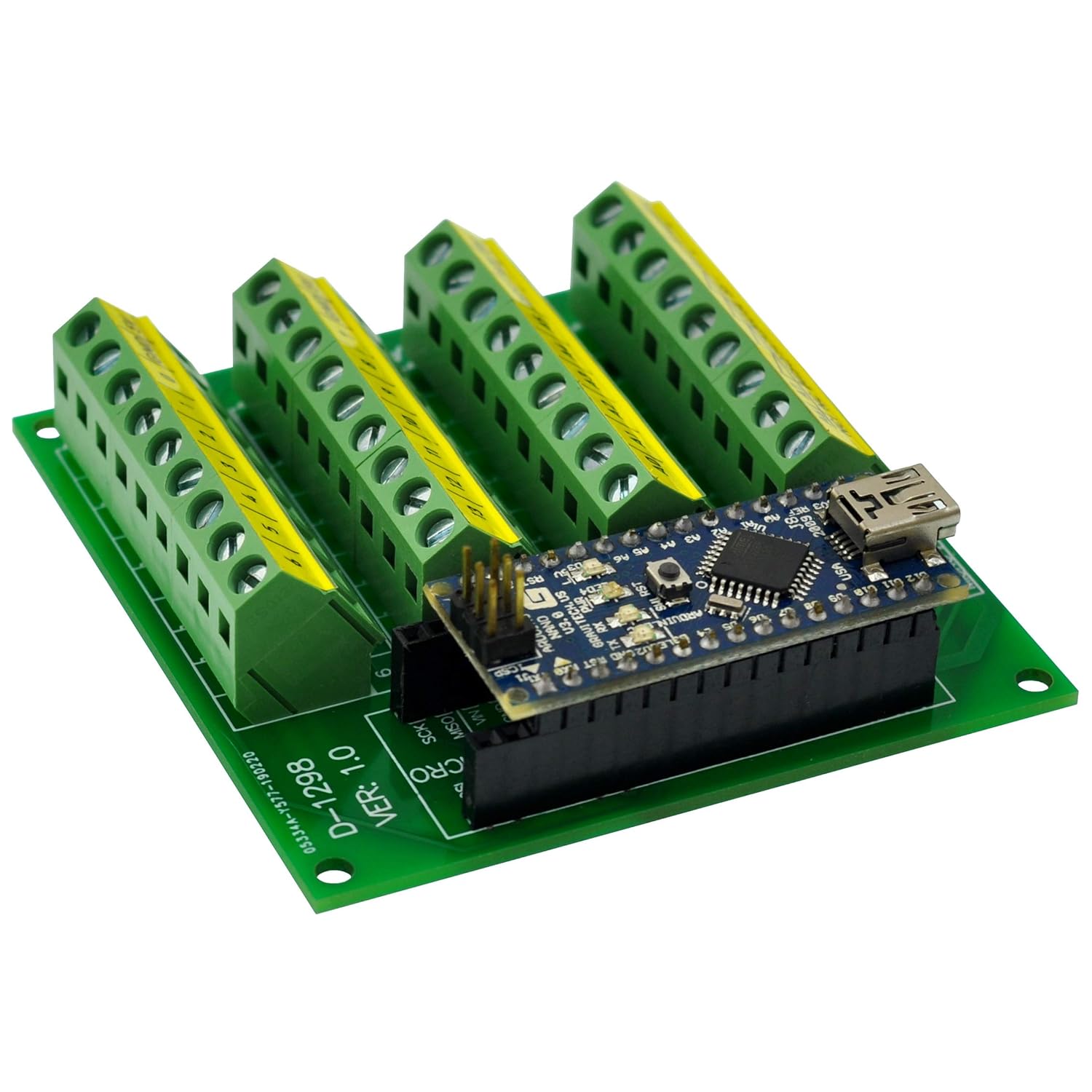

Screw Terminal Block Breakout Module Board for Arduino Nano/Micro.
Product details
| Management number | 218205032 | Release Date | 2026/05/03 | List Price | $8.80 | Model Number | 218205032 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Screw Terminal Block Breakout Board for Arduino NANO/MICRO. With the breakout board, you can easily extend Arduino projects to industrial control applications. PCB mount Terminal Block: pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square. FR-4 fiber glass PCB, dual copper layers. Note: the item not include Arduino-NANO or MICRO.
- Screw Terminal Block Breakout Board for Arduino NANO/MICRO.
- With the breakout board, you can easily extend Arduino projects to industrial control applications.
- PCB mount Terminal Block: pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square.
- FR-4 fiber glass PCB, dual copper layers.
- Note: the item not include Arduino-NANO or MICRO.
| Gauge | 28.0 |
|---|---|
| Model | MD-D1298-1 |
| Pitch | 5 Millimeters |
| Voltage | 5 Volts |
| Brand Name | CZH-LABS |
| Part Number | MD-D1298-1 |
| Manufacturer | CZH-LABS |
| Material Type | Brass |
| Mounting Type | PCB Mount |
| Connector Type | Screw |
| Current Rating | 12 Amps |
| Number Of Poles | 8 |
| Centerline Length | 7 Millimeters |
| Specification Met | ATEX, CE, CQC, CSA, CSTB, DNV GL, EAC, Energy Rating, FCC, IEC, IECEE CB, ISO 9000, ISO 9001, KEMA-KEUR, LR, MIL-SPEC, RoHS, SAE, SGS, UL, VDE, cUL |
| Number Of Contacts | 8 |
| Number of Positions | 8 |
