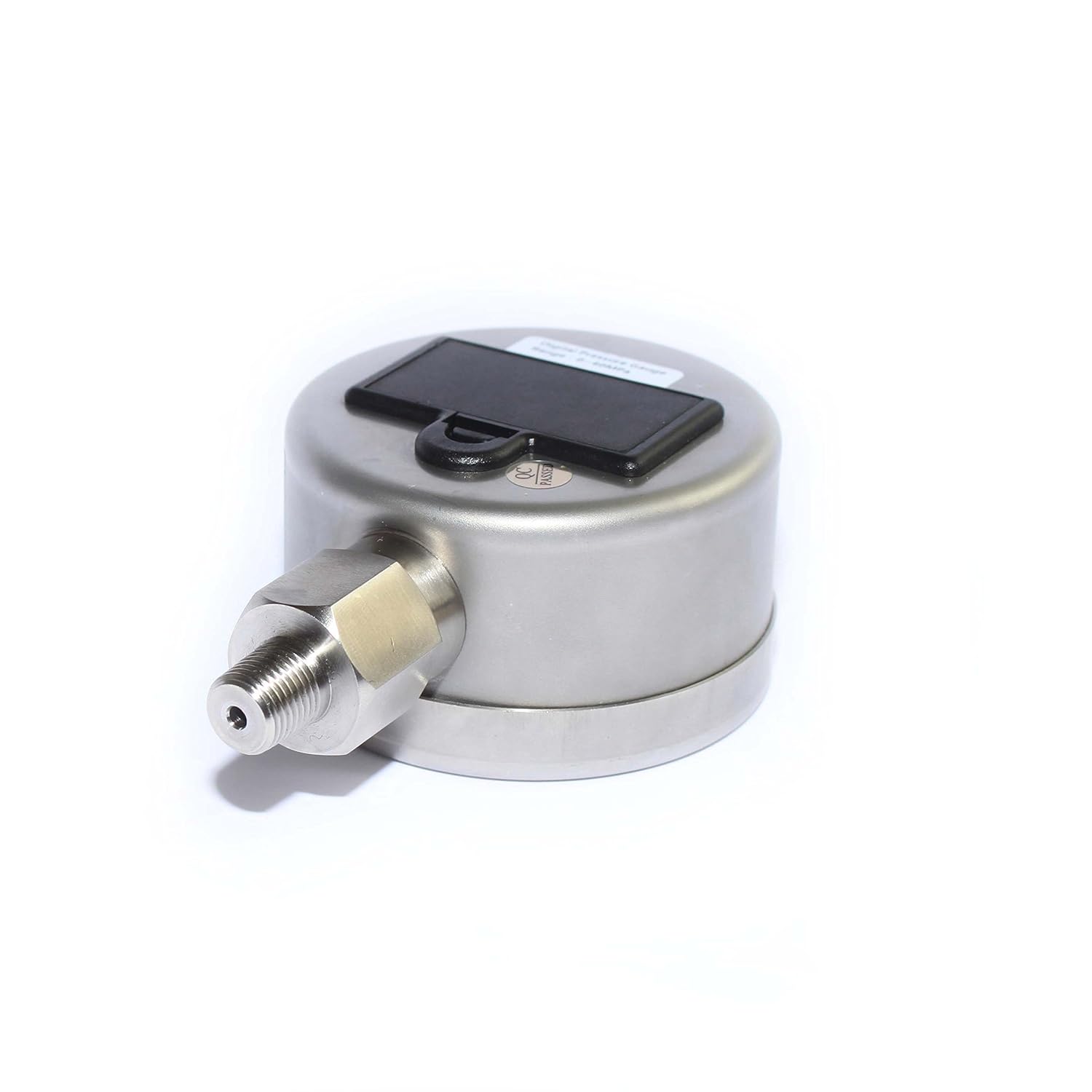

XZT 3.15" Digital Hydraulic Pressure Gauge 0~14500PSI-1/4NPT -Base Entry

Specification: Pressure Range: 0-14500PSI; Pressure Connection: NPT1/4 male; Display Unit: Bar, PSI ,MPa, Kgf/cm2; Overload Capacity: 150%; Accuracy: 0.4%FS; Long-term Stability: 0.4%FS/year; Input Voltage: 3V (two 1.5V AAA batteries); Working Temperature: -20C-70C; Footer Material and Pressure Connection: 304 Stainless Steel; Protection Class: IP65 Thickness: 46mm(18.1inch); Outline Dimension: 80mm(31.5inch); Length:120mm(47.2inch). Features: Button Description: Power button: press power button continuously for 3 seconds to Turn On or Turn Off; UNIT button: shortly press Unit button to change the unit; Long press "unit" button for 5 seconds, the display after the last reset record maximum MAX; Short press "unit" button, switch according to the minimum MIN. Again short press "unit",then quit the records show. ZERO button: pressure Zero button continuously for 3 seconds for zero clearing; LIGHT button: press Light button shortly to turn on or turn off the light,will be closed automatically after 70 seconds. Package Content: 1 x Digital Pressure Gauge; 1 x Manual.

• Change Units: BSP,PSI,MPa,Kgf/cm2
• Zero Clearing
• Backlight
• Accuracy: 0.5%FS
• Record the highest pressure
